Distance Measurement
MAX RANGE | REFLECTORLESS - 1000M
| SINGLE PRISM - 5.0km
Object in shade, or sky overcast
Accuracy | Reflectorless | Fine - 3mm + 2ppm
| tracking - 10mm+2ppm
| reflector | fine - 2mm+2ppm
| tracking - 5mm+2ppm
| IR sheet - 5mm+2ppm
Reading
measuring time | reflectoreless| fine mode: 0.35s;Tracking mode 0.25s
| fine mode: 0.35s ; Tracking mode;0.25s IR sheet mode;0.35s
Atmospheric Correction | manual input, auto correction
Atmospheric and | manual input, auto correction
Earth curvature correction | manual input, auto correction
Prism | meter/U.S/internasional feet/Feet-inch selectable
Anglemeasurement
Measuring method | Absolute continuous
Dia. of encoder Disk | 79mm
minim reading | 1" / 5" (0.3/1.5 mgon)
Accurary | | horizontal: dual, vertical : Dual
TELESCOPE
Imange | erect
tube Leght | 154mm
Effective aperture | 45mm, (EDM; 50mm
Magnification | 30 x
Field of view | 1 30'
Minimum distance | 1m
Resolving | 3"
AUTO COMPENSATOR
System | dual axis liquid-electric
Working range | -+ 6"
Accuracy | 1"
VIAL
Plate vial 30" /2 mm
circular vial | 8' /2mm
OPTICAL PLUMET
imange | Erect
magnification | 3 x
focusing range | 0.5m
fiield of view | 5
ON BOARD BATTERY
Type | rechargeable li-on battery
voltage | DC 7.4V
continuous operation time | 10H
OTHERS
IP standard | IP54
Display | lcd, 6lines, digital
Temperature | - 20 derajatC - 50derajatC
Dimension | 160 x 150 x 330mm
weight | 5.2Kg
Paket Pembelian

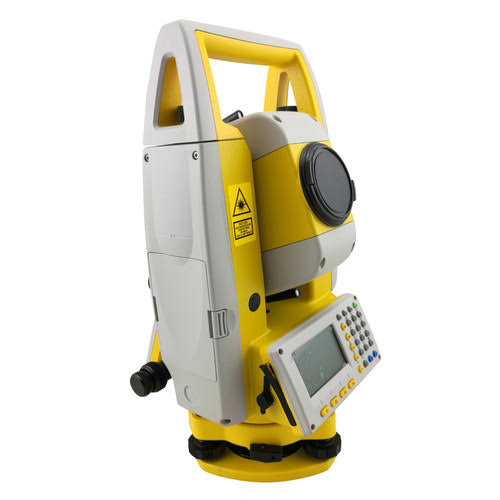

- 1 (satu) unit Total Station South NTS-332R10
- 1 (satu) unit Prisma Target
- 1 (satu) unit Prisma Poligon
- 2 (dua) unit Aluminium Tripod
- 1 (satu) unit Range Pole
