- 9-Second Accuracy
- 26x Magnification, Optical Plummet
- Waterproof
- Single Display
- 10"/20" Readout
- 140-Hour Battery Life

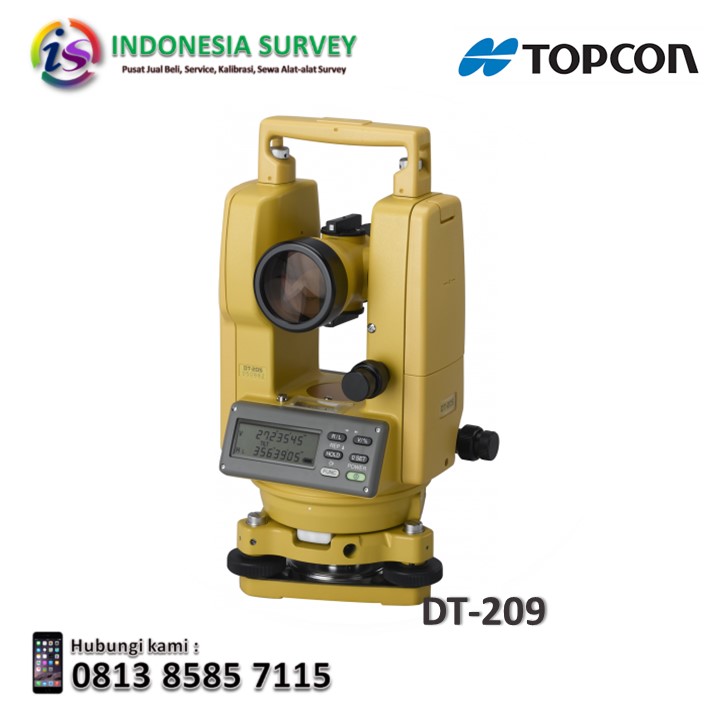

SPECIFICATIONS TOPCON DT-209
Telescope
- Length 149 mm
- Objective lens 45 mm
- Magnification 30x power
- Field of view 1°30'
- Resolving power 2.5 power
- Minimum focus 90 cm
- Stadia ratio 100
- Stadia constant 0
- Sighting collimator Double
Electronic Angle Measurement
- Method Absolute Reading
- Detecting 2 horizontal sides, 1 vertical sides
- Minimum reading 1"/5" arc seconds, 0.2mgon/1mgon mgon
- Accuracy 5 arc seconds, 71mm Diameter Circle
- LCD 7 segments
- Compensator : Sides 2 | Serial signal connector RS-232C | Tilt sensor Vertical
- Data Output : Serial signal connector RS-232C
- Optical Plummet Telescope : Magnification 3x power | Field of view 3° degrees
- Level Sensitivity : Plate level 40°/2mm | Circular level 10°/2mm
- Water Protection : Standard IP66 rating
- Power Supply : Battery 4AA batteries
- Operating time Alk. : Theodolite only 140 Hours
- Environmental : Operating Temp -20 to +50 degrees C
Includes TOPCON DT-209
- Unit Theodolite
- Plumb bob
- Tool kit
- Lint free lens cloth
- Waterproof protective cover
- Hard carrying case
- Alumunium Tripod
- Leveling Staff
